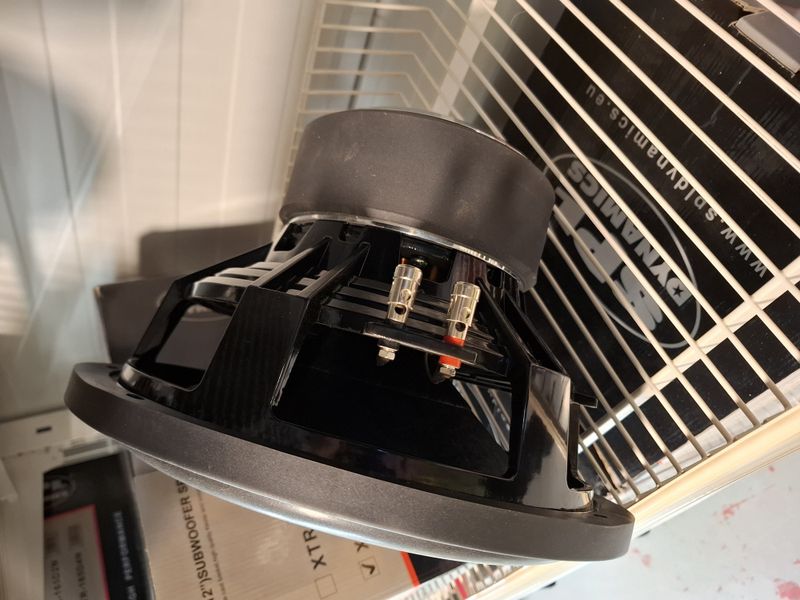

SPL Dynamics XTR-300D4N.
12".
2x 4ohm.
750wRMS.
1500wMAX.
Thiele-Small Parameters
Fs(Hz)
32.5
Vas(l)
60.6
Qts
0.467
Qms
3.755
Qes
0.534
Bl(Tm)
23.3
Mms(gr)
360
Cms(mm/N)
0.067
Rms(kg/s)
19.58
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
80089
Vd(l)
1.041
X-max(mm)
13
X-mech(mm)
26
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.38
Sensitivity(dB) 1-W
87.7
Sensitivity(dB) 2.8-V
90.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
187
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
